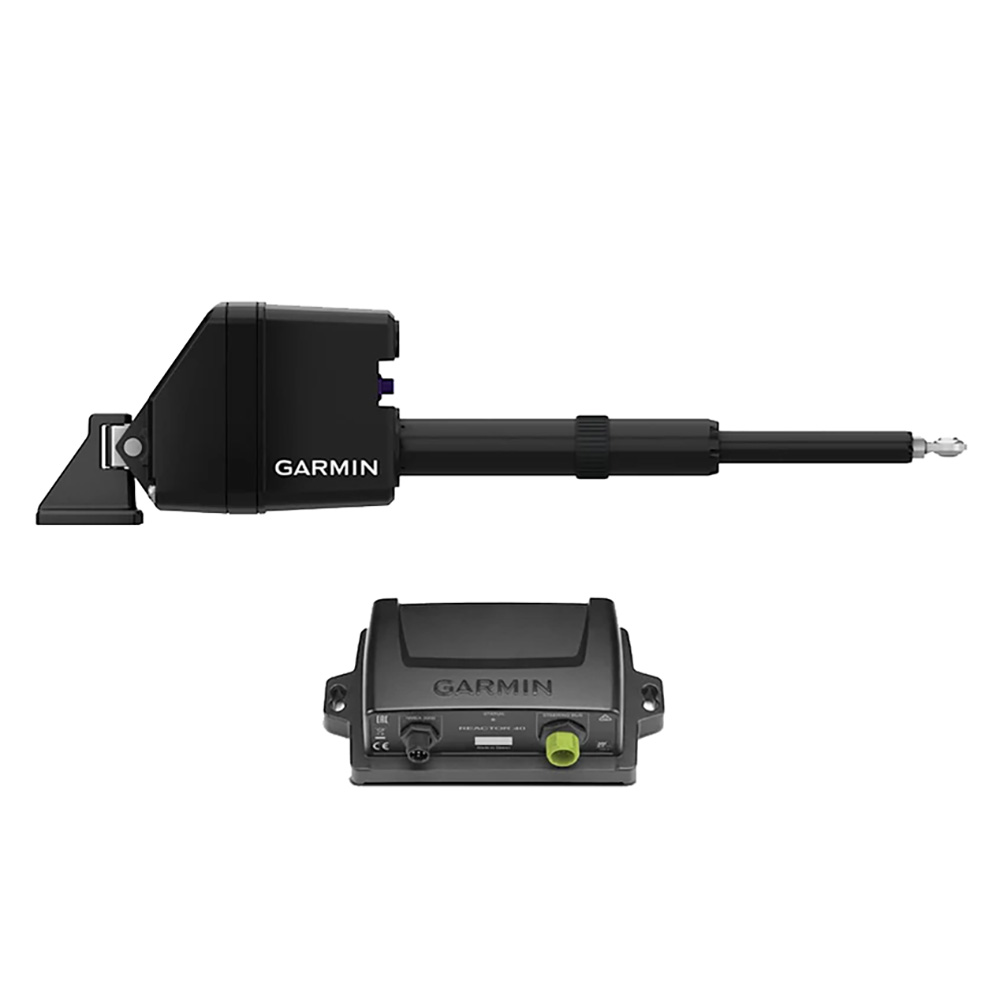

Garmin Reactor™ 40 Sail Corepack w/SmartDrive™ - No Display

Reactor™ 40 Sail Corepack with SmartDrive™ - No Display

The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with built-in ECU. Get precise rudder awareness with minimal mechanical wear.

Course Computer Unit (Reactor™ 40)

Our CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and optional NMEA 2000-compatible devices.

Specifications:

• Dimensions: 3 19/32" diameter (91.4 mm)
• Weight: 5.6 oz (159 g)
• Temperature range: From -15 C to +55 C (5 F to 131 F)
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 9.5 ft (3 m)
• NMEA 2000® power input: 9-16 V
• NMEA 2000 LEN: 3 (150 mA)

SmartDrive™

The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with built-in ECU. Get precise rudder awareness with minimal mechanical wear.

FITS YOUR VESSEL

The brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).

SMARTDRIVE ACTUATOR

This product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.

SOLID-STATE 9-AXIS AHRS

You can mount the Reactor 40 CCU nearly anywhere, in any orientation.

WATER CONDITION REACTIONS

This autopilot reacts to sea conditions so you ca
