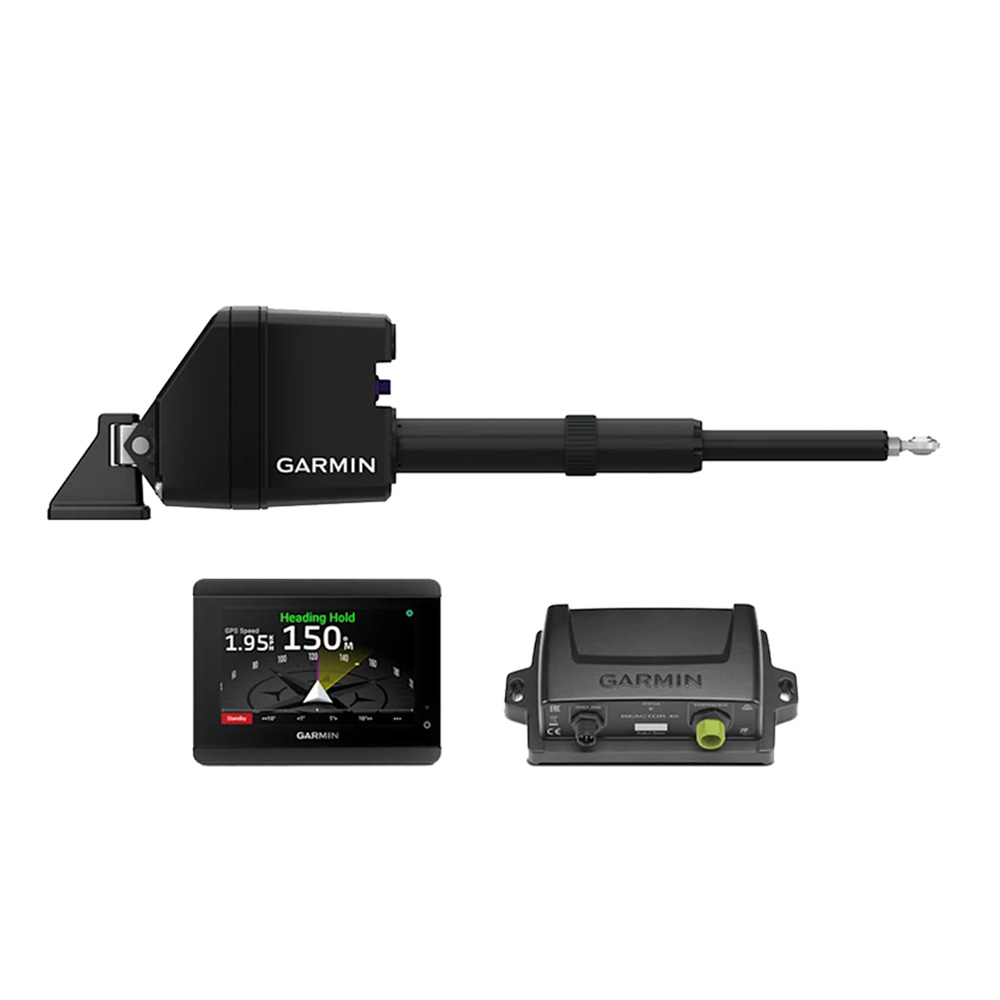

Garmin Reactor™ 40 Sail Corepack w/SmartDrive™ & GHC™ 50 Display

Reactor™ 40 Sail Corepack with SmartDrive™ & GHC™ 50 Display

The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.

GHC 50 Display

• A 5” touchscreen interface with a bright display. Call it navigating with a simple touch.
• Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.
• Share settings with your Garmin MFDs, and watch your integrated system come to life.
• From the Garmin Marine Network (GMN) to wireless connectivity1, there are many ways to connect to your autopilot.
• Control your boat your way with wired or wireless remote-controlled options.

Specifications:

• Dimensions without sun cover (H x W x D): 4.13” x 5.51” x 2.01” (105 x 140 x 51 mm)
• Dimensions with sun cover (H x W x D): 4.45” x 5.67” x 2.20” (113 x 144 x 56 mm)
• Touchscreen: yes
• Display resolution: 800 x 480
• Display type: WVGA
• Weight: 11.57 oz (328 g)
• Water Rating: IPX7
• Mounting options: Flat or flush
• NMEA 2000 ports: 1
• Garmin Marine Network ports: 1
• ANT+ (Connectivity): yes
• Garmin Wi-Fi Network (local connection): yes
• Power input: 9 to 32 VDC
• Typical current draw at 12 VDC: 220 mA
• Maximum current draw at 12 VDC: 400 mA
• Maximum power usage at 10 VDC: 4.9 W

Course Computer Unit (Reactor™ 40)

Our CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20
