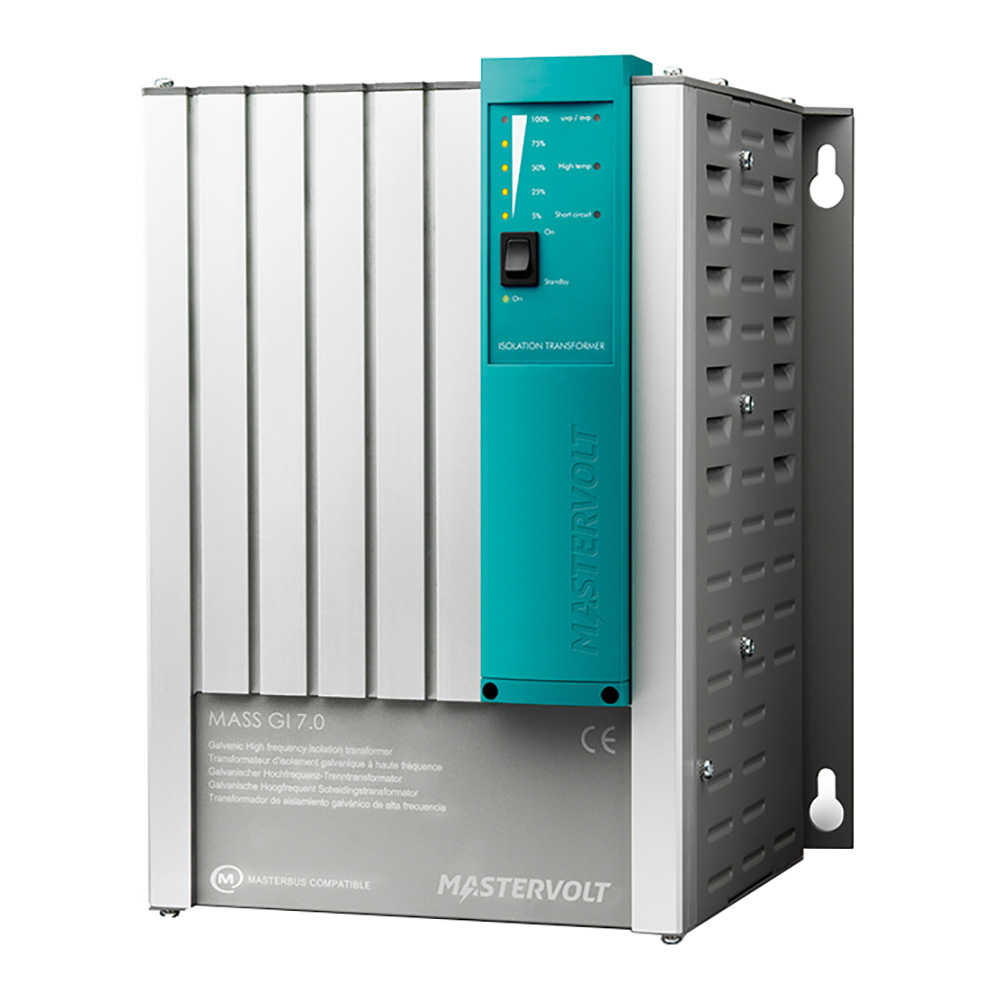

Mastervolt Mass GI 7 Isolation Transformer 7KW

Mass GI 7 Isolation Transformer 7KW

A safe connection between the vessel and the shore installation is an essential part of your electrical system. A galvanic electrical isolation between shore power and the on-board power prevents any electrical corrosion of metal parts while keeping you earthed.

Features:

• Ultra-modern high-frequency electronic switch technology.
• Lightweight and compact.
• Integrated Soft Start function.
• Connect to voltages from 90 to 255 V and from 45 to 65 Hz.
• Units can be parallel-coupled for higher capacity.
• Higher efficiency, limited heat development.

Modern transformer technology: Light, silent, reliable, and easy - The Mass GI is supplied with the latest high-frequency switching technology as well as Soft Start for peak loads when connecting to the grid. LED lights on the casing indicate load and overload. The transformer can be remote-controlled. The Mass GI is 75 % lighter and 60 % smaller than a low-frequency transformer.

Higher capacity via parallel switching - Parallel switching of the Mass GI units increases the AC power capacity. Two 16 A/3.5 kW units ensure 32 A/7 kW; four units give 64 A/14 kW.

Install anywhere - With its robust aluminium casing, this isolation transformer can be fitted in any position on the wall or floor. No rubber mountings are necessary because the unit does not vibrate or hum. The Mass GI also features professional connections with strain relief cable glands.

Specifications:

• Output voltage (± 5 %) - 90-255 V
• Output frequency range - 45-65 Hz
• Input voltage range - 90-255 V
• Input frequency range - 45-65 Hz
• Nominal input current (230 V) - 32 A
• Galvanic isolation - yes
• Efficiency - > 93 %
• Power 230 V (12
