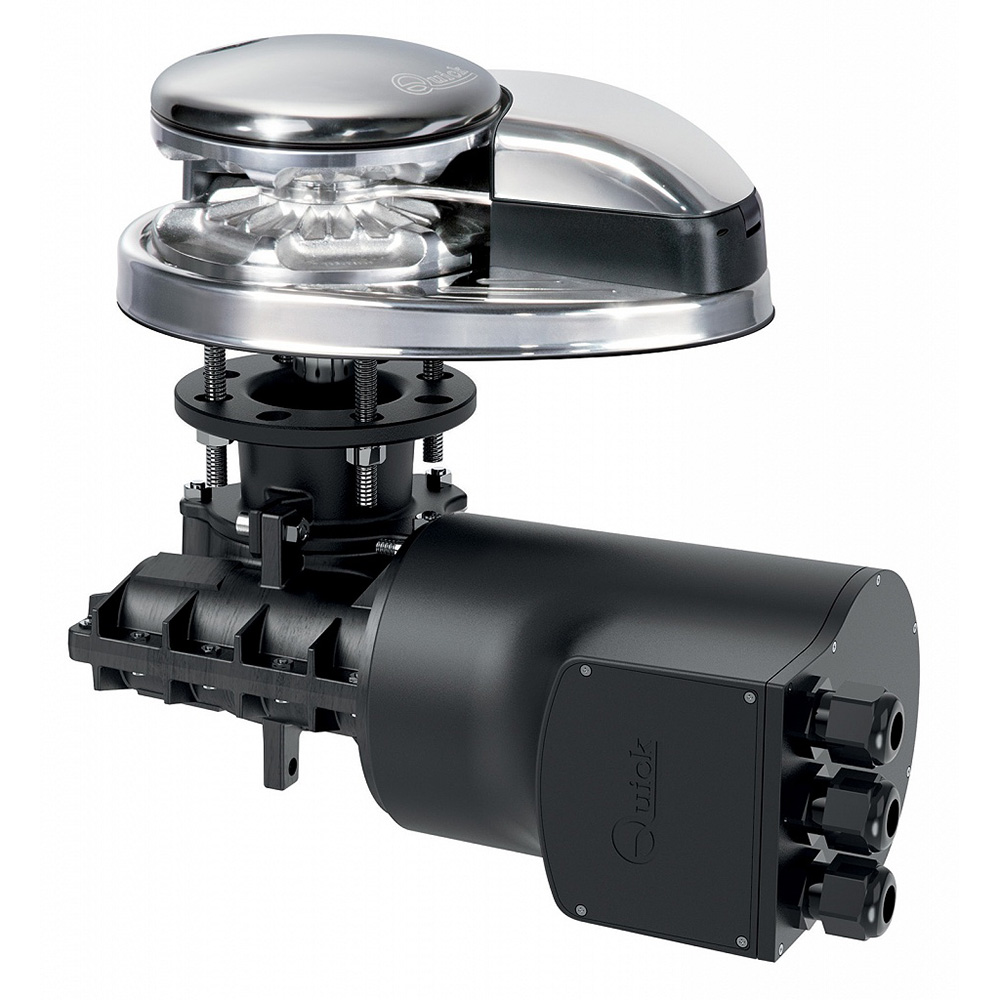

Quick Prince DP3 Windlass - 700W, 12V, 8mm - 5/16" Gypsy - 5/8" Rope - Prewired Built
Out of StockNewSKU: FSDP30712008B00
$1581.46$1860.54per unit
1
Secure Checkout
Shipping Available
Returns Available
This item is currently out of stock.
Special order from Quick — Estimated 2–4 weeks.
Description
Prince DP3 Windlass - 700W, 12V, 8mm - 5/16" Gypsy - 5/8" Rope - Prewired Built
The DP3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Vertical Windlass
- For boats 23- 40 ft
- Includes T6315-12 Solenoid
- 8mm - 5/16" Gypsy
- Requires 5/8" Rope
- 700W Motor, 12V
- Stainless steel AISI 316 base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- IP67 Motor watertight
- Technopolymer gearbox
Specifications:
- Motor power - 700 W
- Motor supply voltage - 12 V
- Maximum pull - 850 Kg / 1874 lb
- Maximum working load - 250 Kg / 551 lb
- Working load - 80 Kg / 176 lb
- Current absorption @ working load - 90 A
- Maximum chain speed - 27,4 m/min / 89.9 ft/min
- Maximum chain speed @ working load - 14,4 m/min / 47.2 ft/min
- Weight - 36 lb
