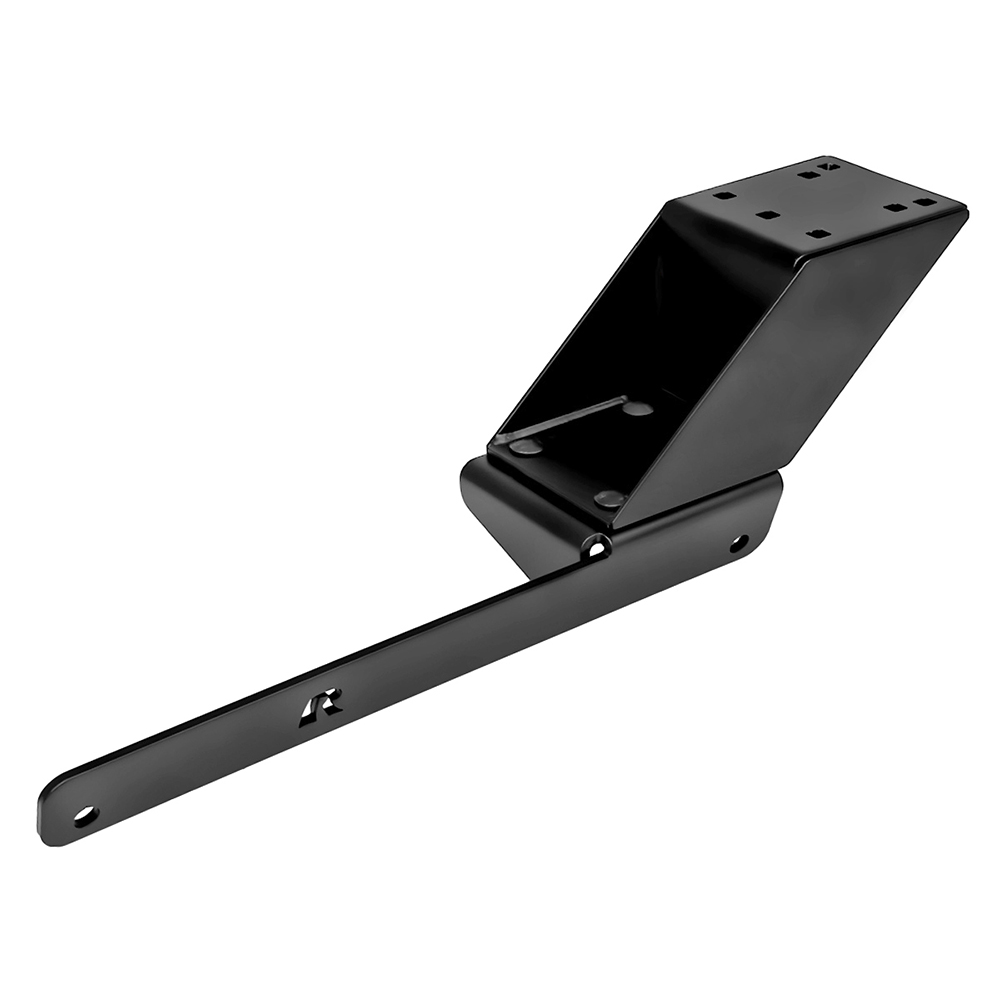

RAM Mount No Drill Vehicle System Dodge 1500-5500 2008-2011

Vehicle Base

Compatible Vehicles:
DODGE RAM 1500-5500 (2008-2011)

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation


Placement of Mount:
Passenger side, front, where seat rail frame attaches to floor board.

DRILLING REQUIREMENTS:
No - attaches to seat studs

Seat Configuration:
Bucket

Pole:
Purchased Separately

Weight:
2.1 lbs.

Material:
Powder Coated Steel

Dimensions:
A = 14.75", B = 3.8", C = 1.75", Hole Center = 13.25"

Features:
Quick installation with no drilling needed. Rock solid construction with lifetime warranty. Low profile keeps mount away from passenger leg space. Won?t interfere with levers or factory-installed console or 4WD lever. Designed to accommodate trucks with PTO

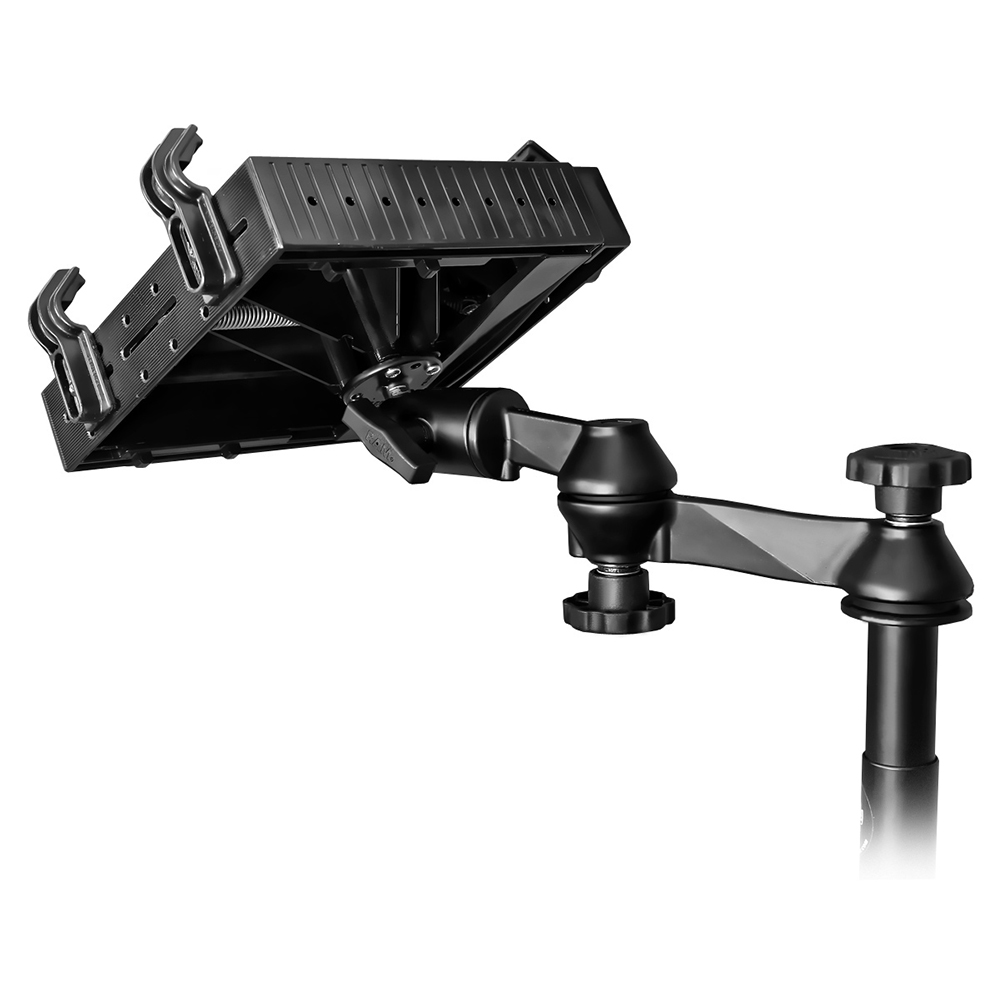

Swing Arm
The RAM RAM-VP-SW1-89, combination swing arm/tele-pole system, will connect to any RAM vehicle base without a welded female tele-pole. Included is a tele-pole with a height range from 11.5" to 17"; it can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the tele-pole becomes a rigid support for any RAM cradle, holder or Tough-Tray.

The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your laptop, tablet, UMPC, monitor, or any other connected electronic device, when mounted on your RAM Vehicle Mount. Taking the highly successful RAM Vehicle Mounts to the next level, this rotating swivel arm give
