BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC

BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC

The BPS-8 is an eight-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 80ft in length or can be combined with additional systems for larger vessels. The BPS-8 is also the perfect solution for vessels under 52' with inboards or sail drives to have one system covering the entire vessel.

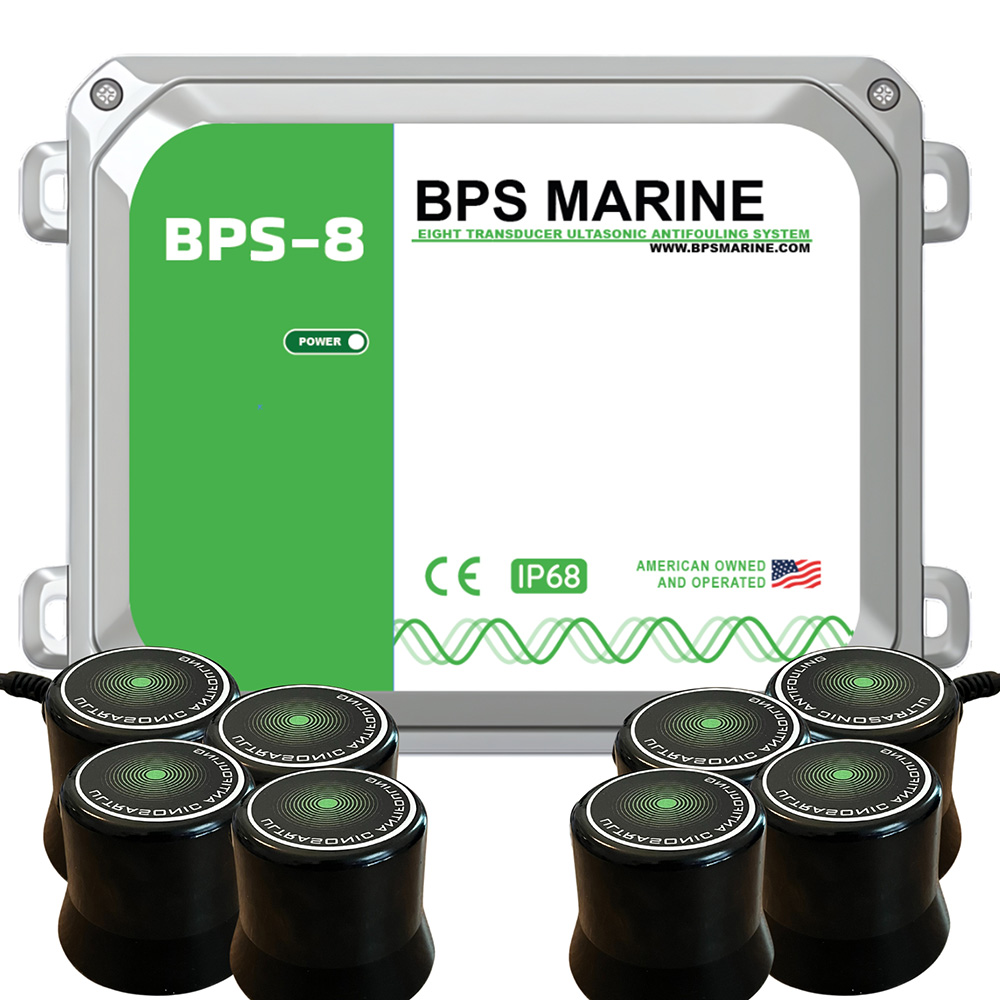

The BPS-8 Package Includes:

• 1x BPS-8 Control Module with Integrated Power Cable
• 8x Submersible Ultrasonic Transducers with 15ft of Cable
• 4x Additional 15ft Extension Cables
• 2x Epoxy Kits
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 12V or 24V DC
• Average Power Draw: 2Ah
• Transducer Strength: 60W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The BPS-1 Controller runs off of your boat's existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
• Enjoy Worry-Free Boating: That's it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through
