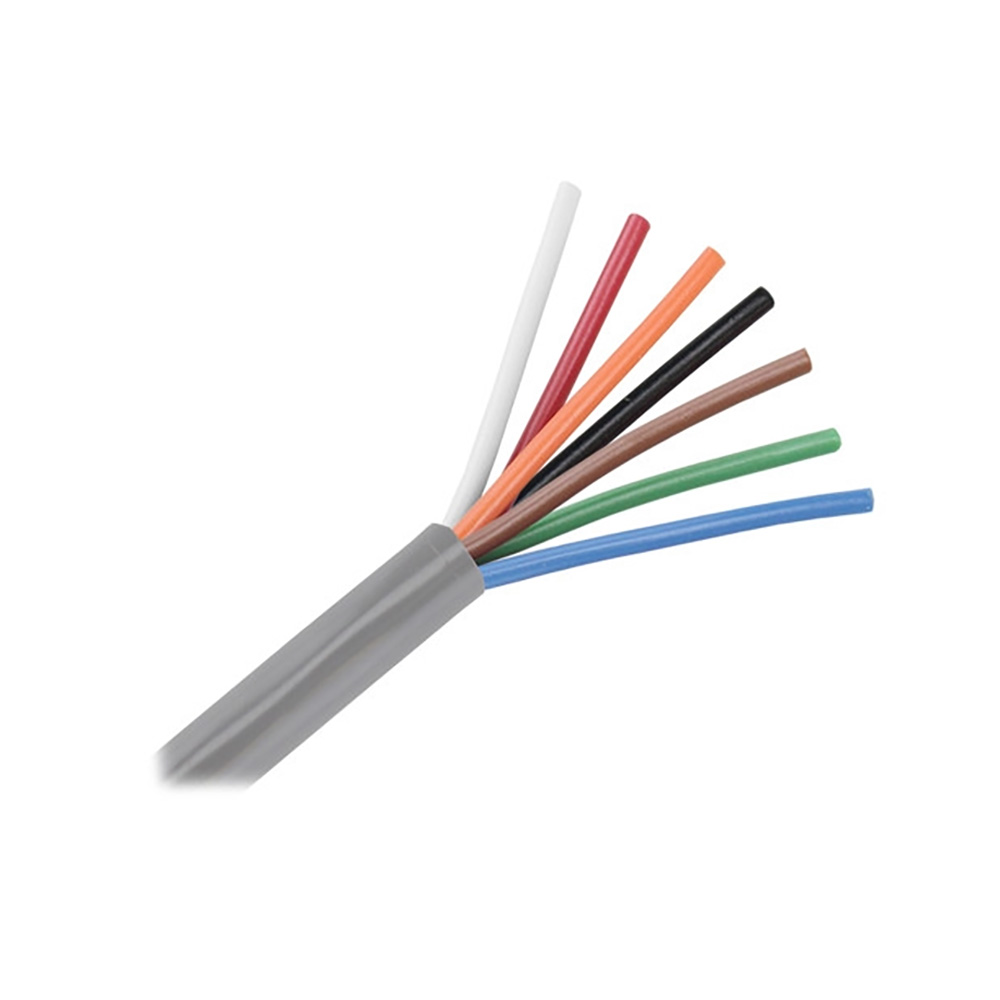

Pacer Unshielded 7 Conductor Cable - 100' - 18/7 AWG - White, Red, Orange, Black, Brown, Green, & Blue

Unshielded 7 Conductor Cable - 100' - 18/7 AWG - White, Red, Orange, Black, Brown, Green, & Blue

Unshielded multiconductor 18 AWG cables are used in a wide variety of applications. Oftentimes, they can be found in things like consumer electronics and industrial control equipment. They are used in advanced signal transmissions in controlled environments as well. What does all that mean? Well, essentially, it means that multiconductor cables are used for controlling equipment.

Unshielded multiconductor 18 AWG cables are constructed from finely stranded tinned copper conductors. The conductors are insulated with color-coded PVC. The now insulated conductors are covered with a durable yet flexible PVC jacket. This keeps the conductors together while offering superior protection. These cables are manufactured to meet the requirements for UL, CSA, RoHS, and NEC. Temperatures and voltages are not always the same from cable to cable.

Features:

• 100 ft. of cable
• Fully annealed stranded tinned copper per ASTM B33
• Premium-grade color-coded PVC insulation
• Grey PVC jacket—20°C to 105°C

Specifications:

• Number of Conductors: 7
• Conductor Colors: White, red, orange, black, brown, green, and blue
• Conductor Stranding: 16/30
• Jacket Color: Grey
• Nom. Cap. pF/ft Between Conductors: 30.5
• Nom. Insulation Thickness: 7 conductors @ 0.016"
• Jacket Thickness (inch): 7 conductors @ 0.032"
• Nom. Cable O.D. (inch): 7 conductors @ 0.309"

Applications:

• Public address systems
• Intercoms and internal telephones
• Suitable for EIA RS-232 applications
• Remote control circuits

Compliances:

• NEC Article 800 Type CM (UL: 75°C)
• UL Style 2464 (UL: 80&d
