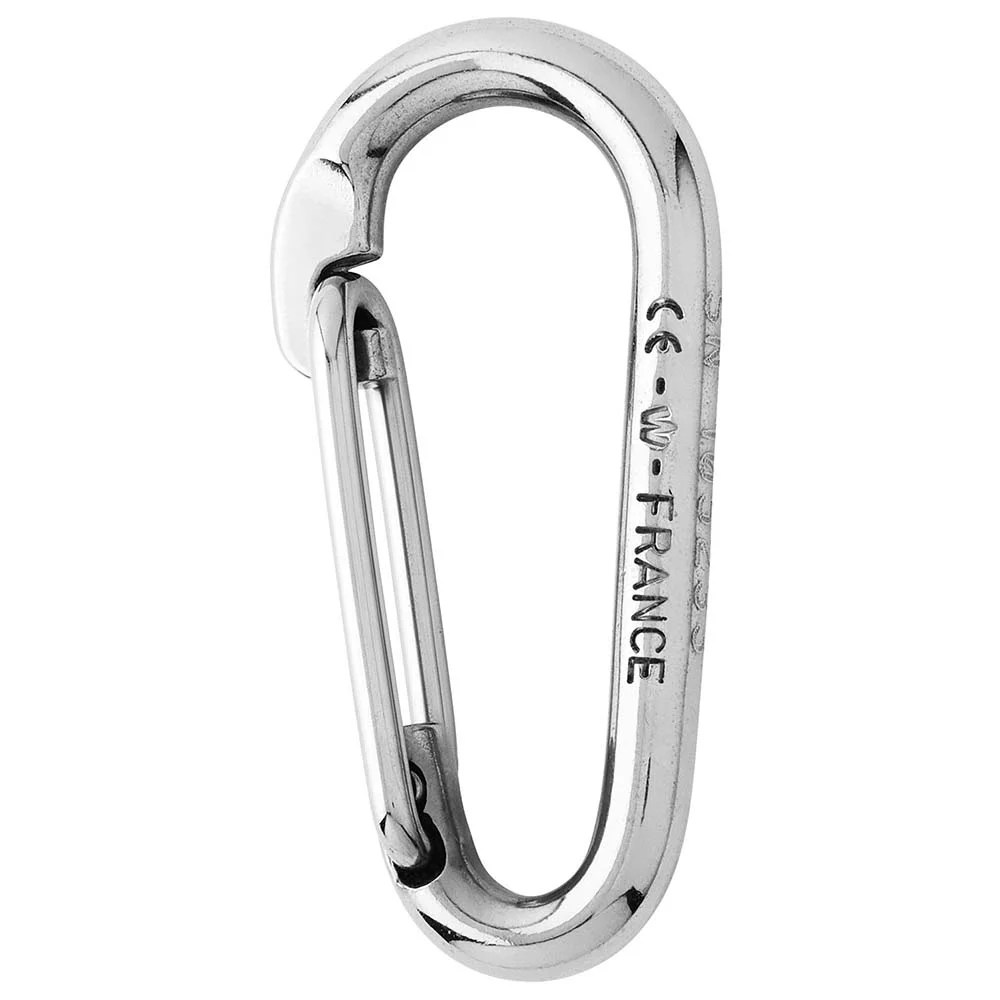

Symmetric Carbine Hook Without Eye – Length 80mm – 5/16″
Features:
- Grade 316L stainless steel carbine hooks
- Symmetrical shape without eye
Applications:
- For fastening applications
Specifications:
- Materials 316L stainless steel grade
- Length (inch) 3-5/32″
- Working load (lb) 1940
- WLL (lb) 700
- Breaking load (lb) 3520
- Weight (lb) 0.137

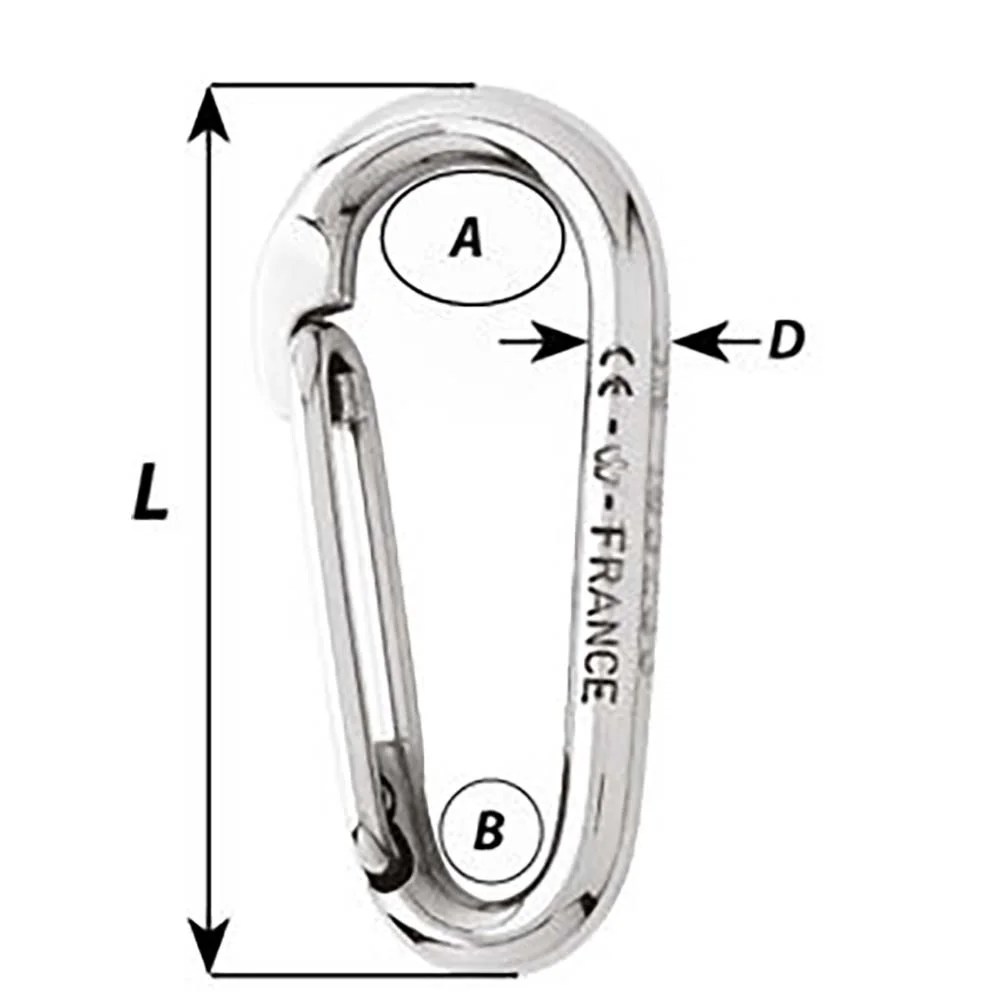

Dimensions (see 2nd image):
- A (inch) 33/64″
- B (inch) 33/64″
- D diameter (inch) 5/16″
| Weight | 0.15 g |
|---|---|
| Dimensions | 6 × 2 × 1 cm |
Brand
Wichard Marine
No accessories available for this product.
No literature available for this product.
No videos available for this product.
