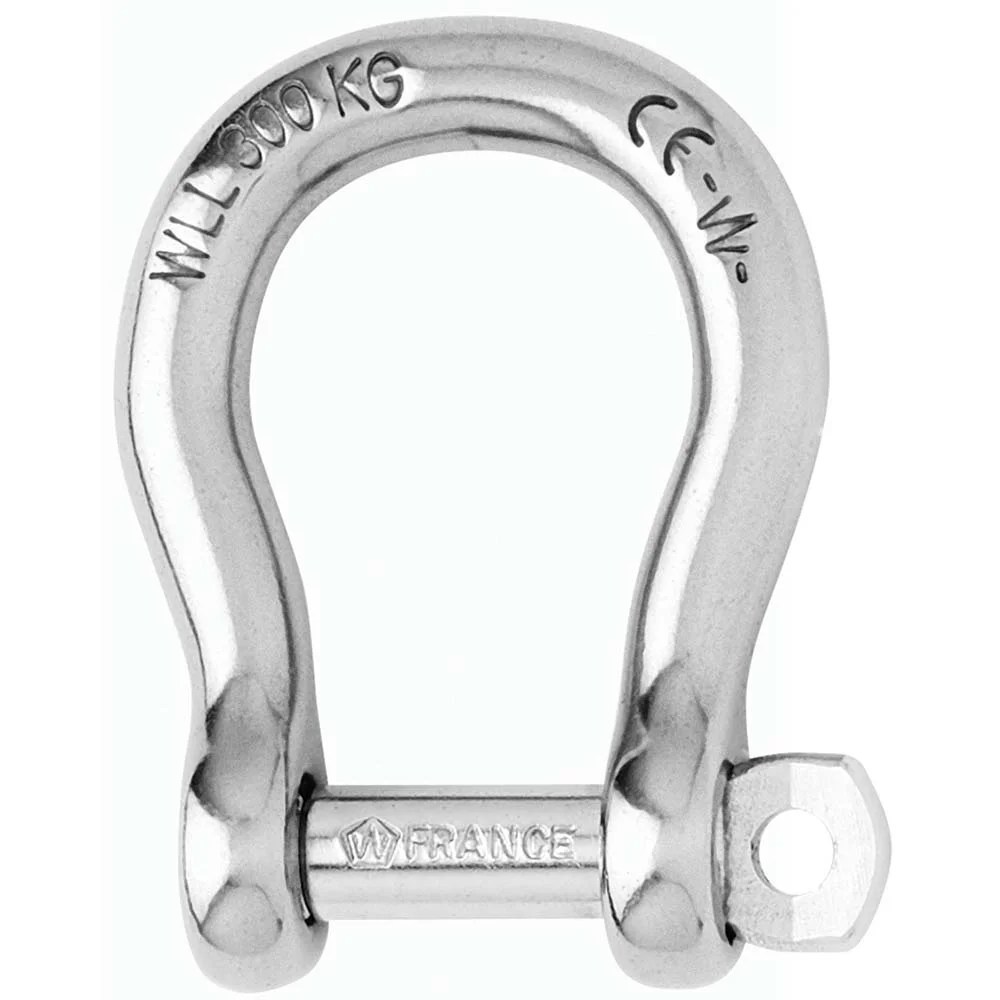

Wichard Self-Locking Bow Shackle – Diameter 8mm – 5/16″

Self-Locking Bow Shackle – Diameter 8mm – 5/16″

Features:

• Self-locking bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1190
• Breaking load (lb) 5950
• Weight (lb) 0.15

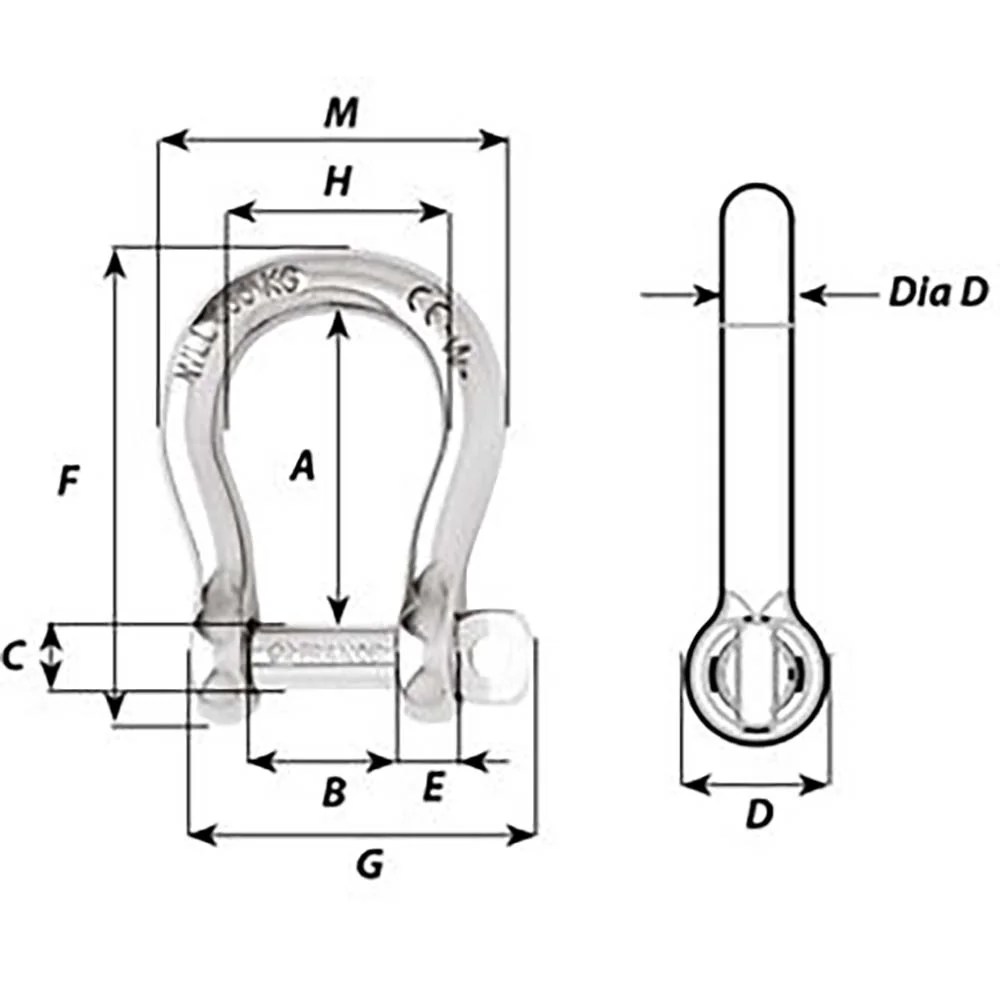

Dimensions (see 2nd image):

• A (inch) 1-29/64″
• B (inch) 5/8″
• C (inch) 5/16″
• D (inch) 5/8″
• D diameter (inch) 5/16″
• E (inch) 9/32″
• M (inch) 1-17/32″
