Wichard Diamond Pad Eye – Square – 98mm Length (3-55/64″) – M8 Screw
$60.60
2 in stock

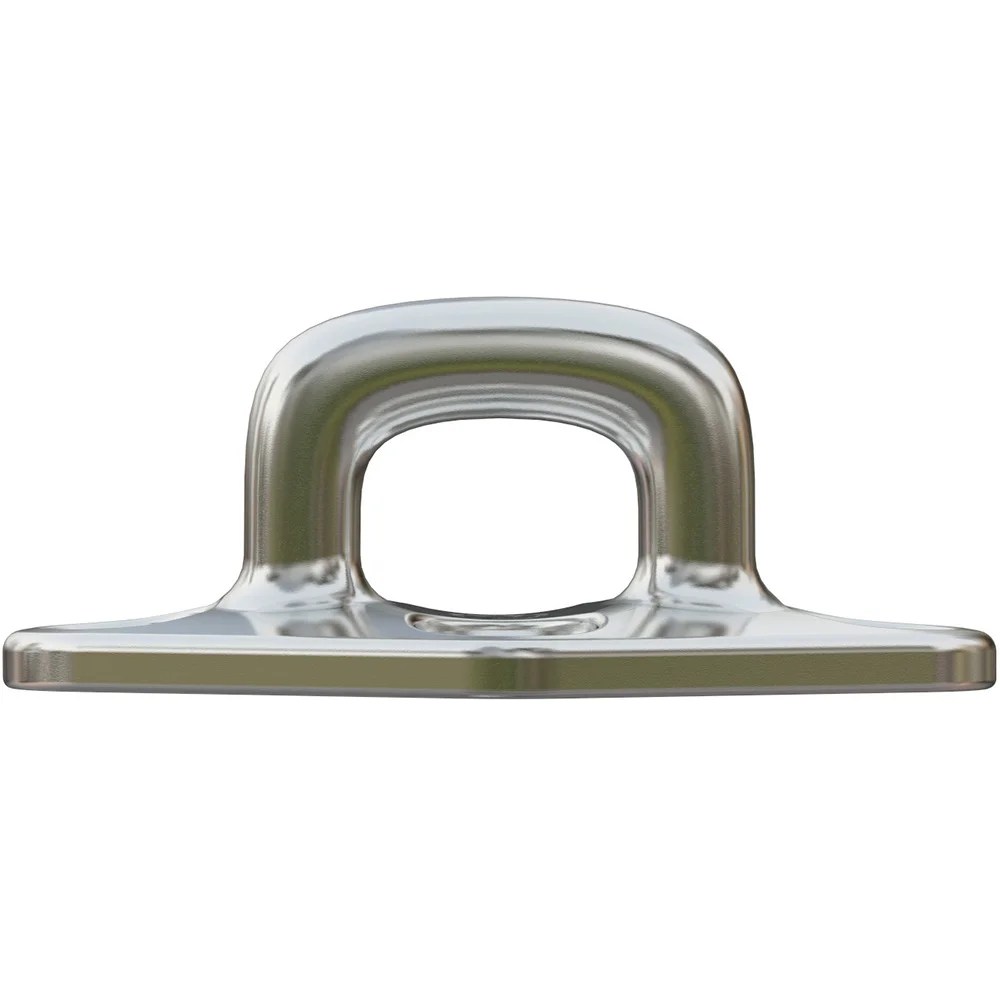

Diamond Pad Eye – Square – 98mm Length (3-55/64″) – M8 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M8 screw
Applications:
- Mast foot blocks
- Reefing blocks
- Various fastenings
Specifications:
- Materials: Duplex stainless steel grade
- Working Load: (lb) 9479.8 / (kg) 4300
- Breaking Load: (lb) 25573.6 / (kg) 11600
- Weight: (lb) 0.562 / (g) 255
- W.L 1 (90 degrees): (lb) 9479.8 / (kg) 4300
- W.L 2 (45 degrees): (lb) 9479.8 / (kg) 4300
- W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
- B.L 1 (90 degrees): (lb) 25573.6 / (kg) 11600
- B.L 2 (45 degrees): (lb) 25573.6 / (kg) 11600
- B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

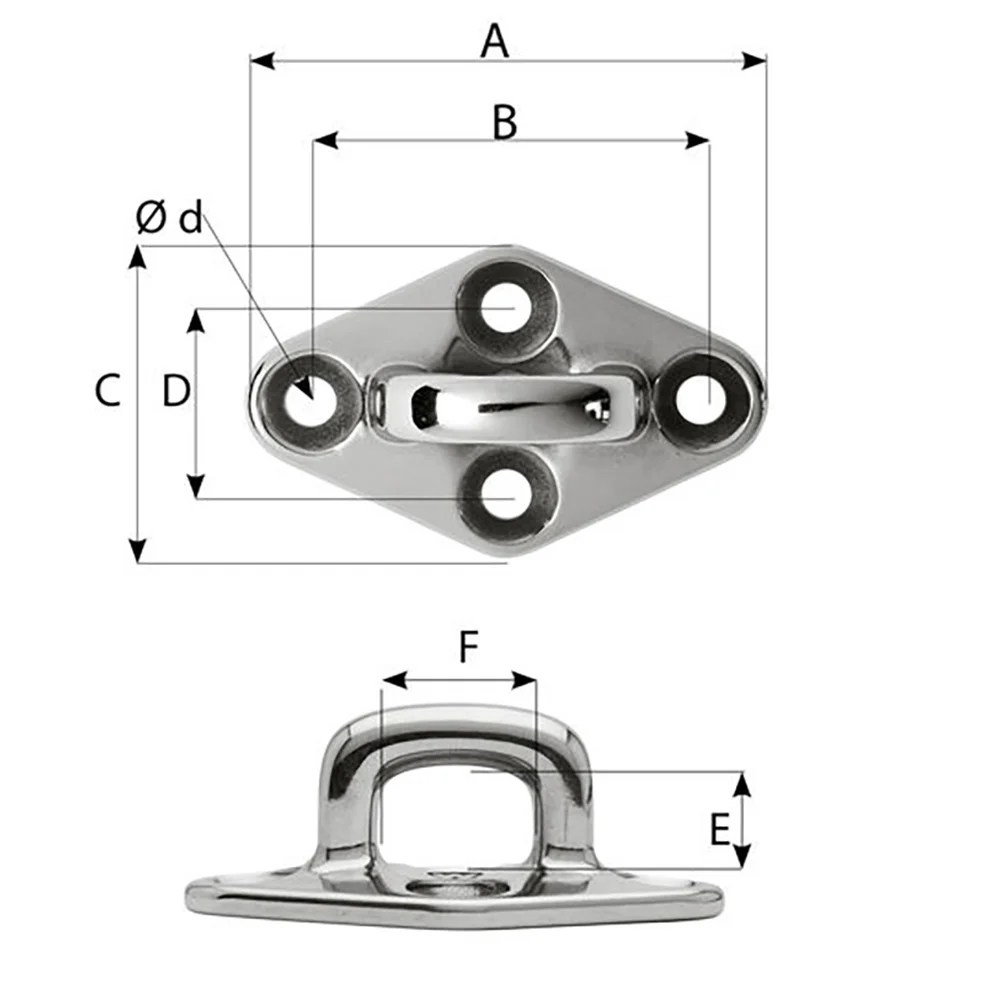

Dimensions:
- A: (inch) 3 55/64″ / (mm) 98
- B: (inch) 2 7/8″ / (mm) 73
- C: (inch) 2 21/64″ / (mm) 59
- D: (inch) 1 3/8″ / (mm) 35
- E: (inch) 49/64″ / (mm) 19.5
- F: (inch) 1 1/16″ / (mm) 27
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
| Weight | 0.55 g |
|---|---|
| Dimensions | 4 × 3 × 2 cm |
Brand
Wichard Marine
No accessories available for this product.
Literature
Quick Guide: Download PDF
