Wichard Captive Pin Long D Shackle – Diameter 5mm – 3/16″

Captive Pin Long D Shackle – Diameter 5mm – 3/16″

Features:

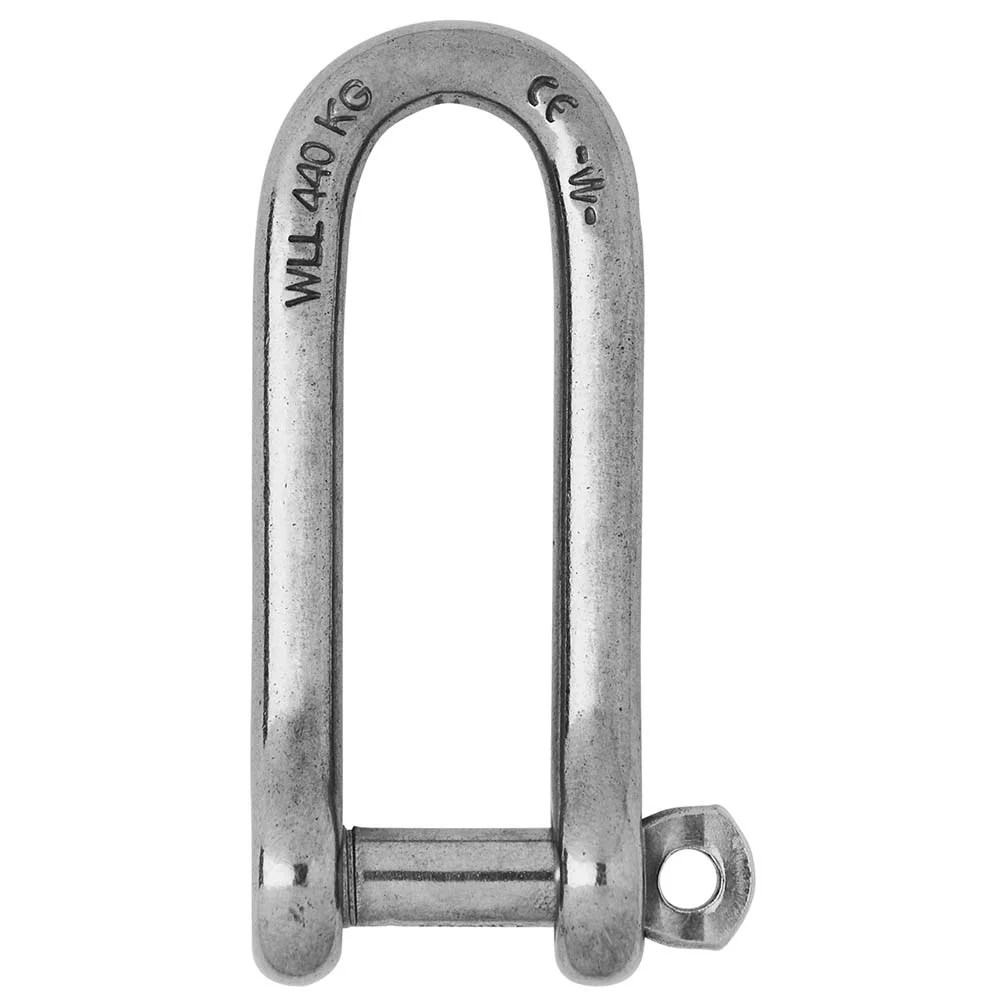

• Captive pin long “D” shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head…

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• WLL (lb) 660
• Breaking load (lb) 3300
• Weight (lb) 0.053

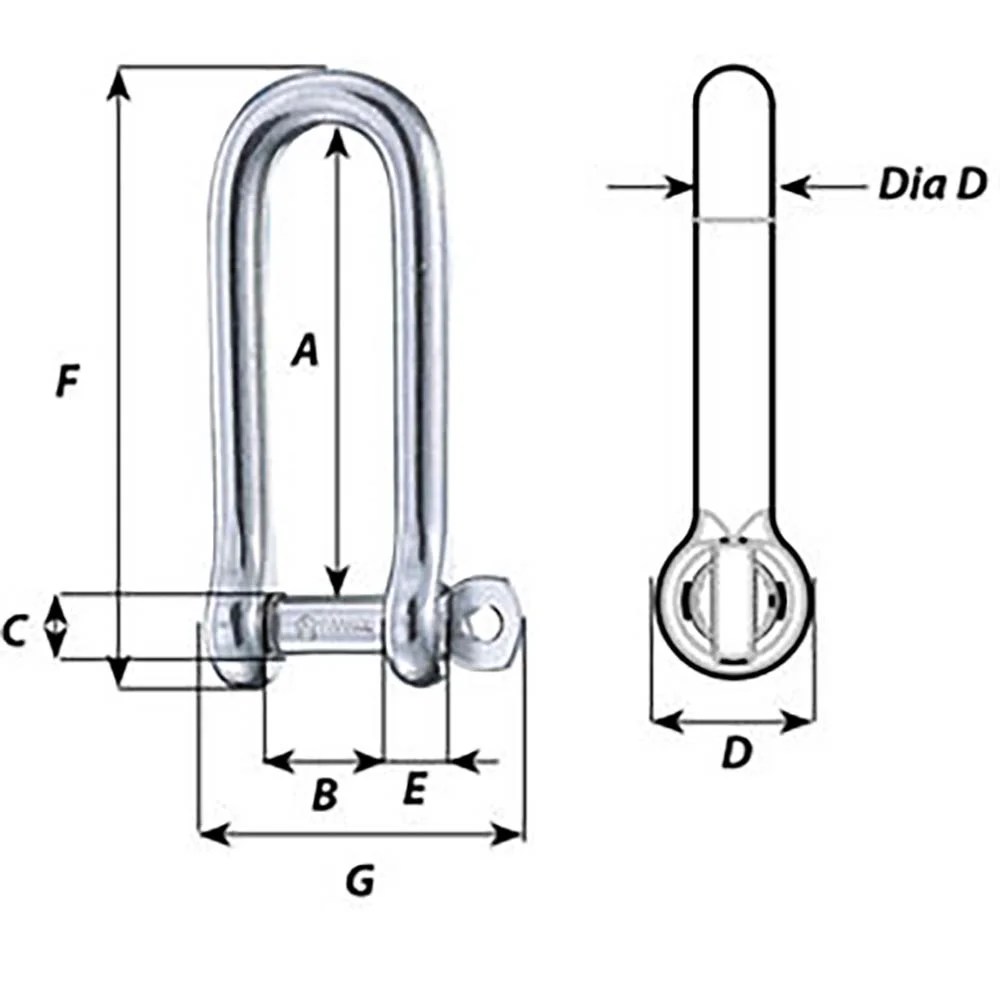

Dimensions (see 2nd image):

• A (inch) 1-17/32″
• B (inch) 25/64″
• C (inch) 15/64″
• D (inch) 7/16″
• D diameter (inch) 13/64″
• E (inch) 13/64″
• F (inch) 2-3/64″
• G (inch) 1-1/16″
