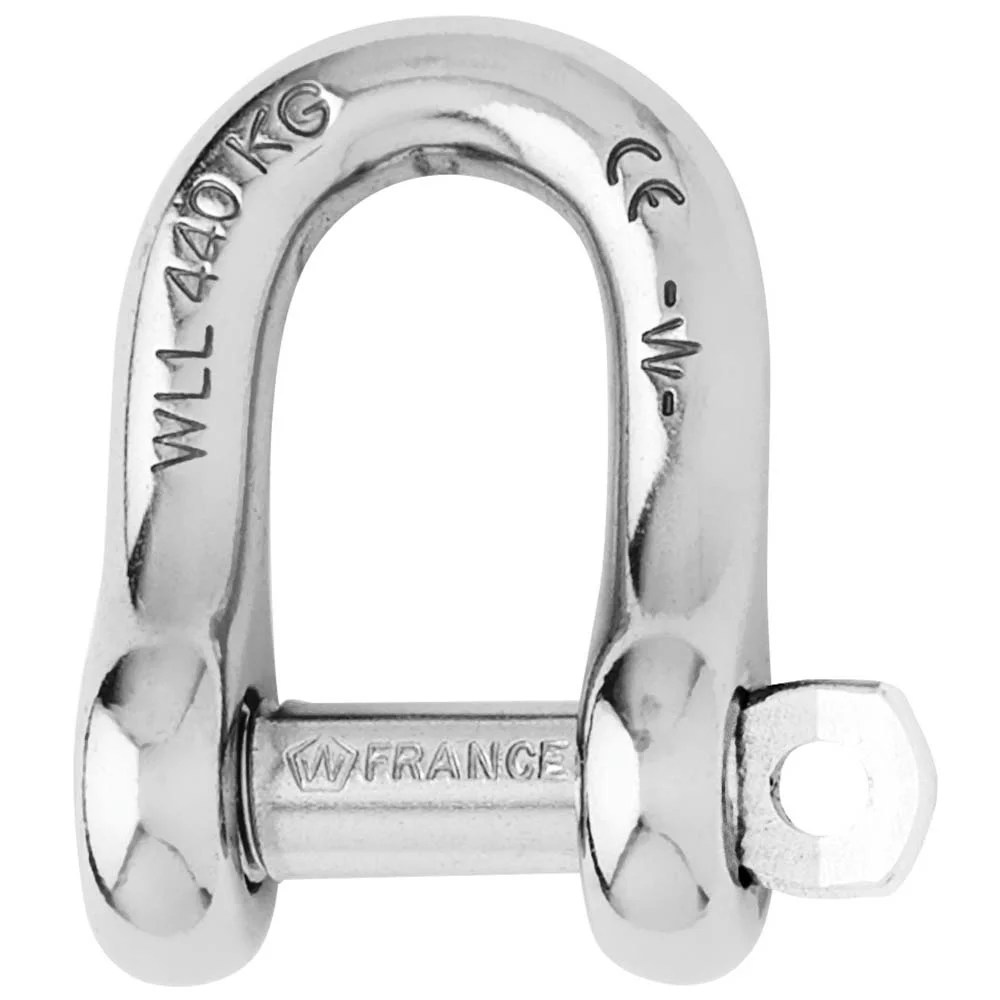

Captive Pin D Shackle – Diameter 6mm – 1/4″
Features:
- Captive pin “D” shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1490
- WLL (lb) 970
- Breaking load (lb) 4850
- Weight (lb) 0.062

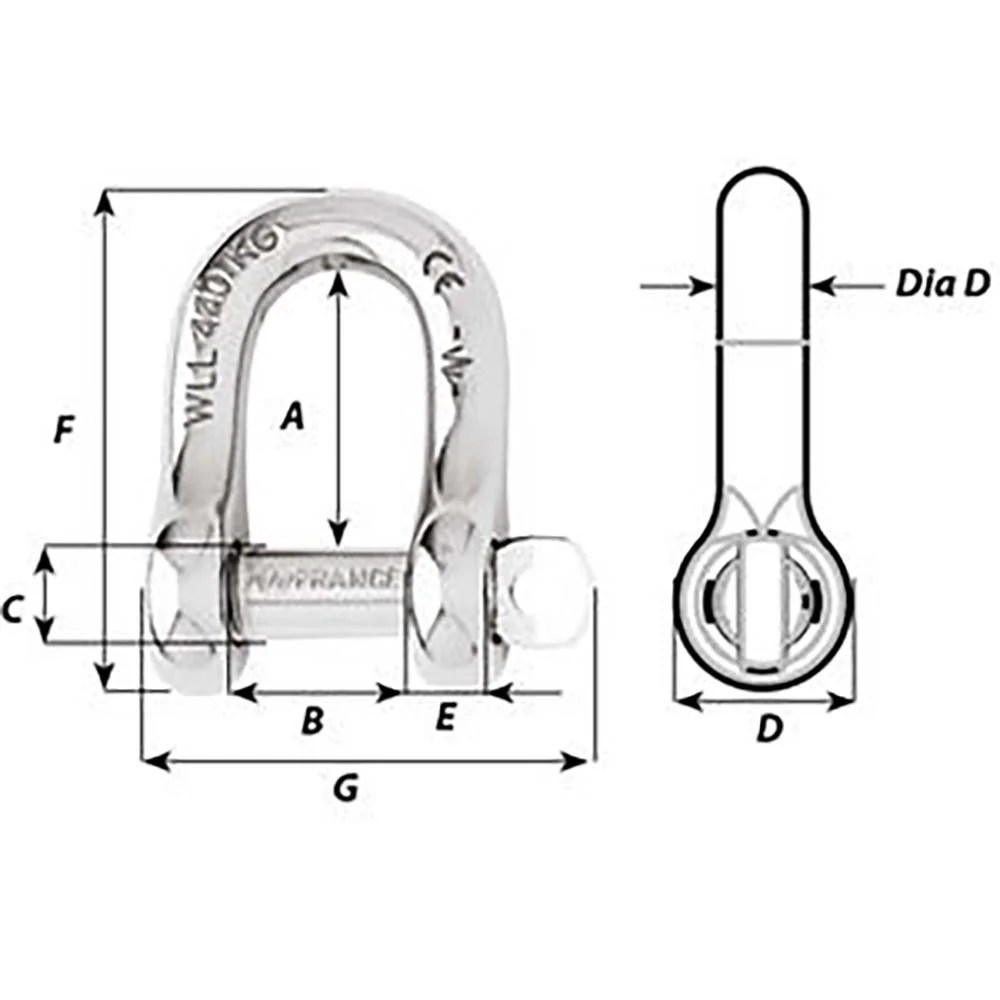

Dimensions (see 2nd image):
- A (inch) 25/32″
- B (inch) 15/32″
- C (inch) 9/32″
- D (inch) 35/64″
- D diameter (inch) 15/64″
- E (inch) 15/64″
- F (inch) 1-27/64″
- G (inch) 1-17/64″
| Weight | 0.1 g |
|---|---|
| Dimensions | 6 × 2 × 1 cm |
Brand
Wichard Marine
No accessories available for this product.
No literature available for this product.
No videos available for this product.
