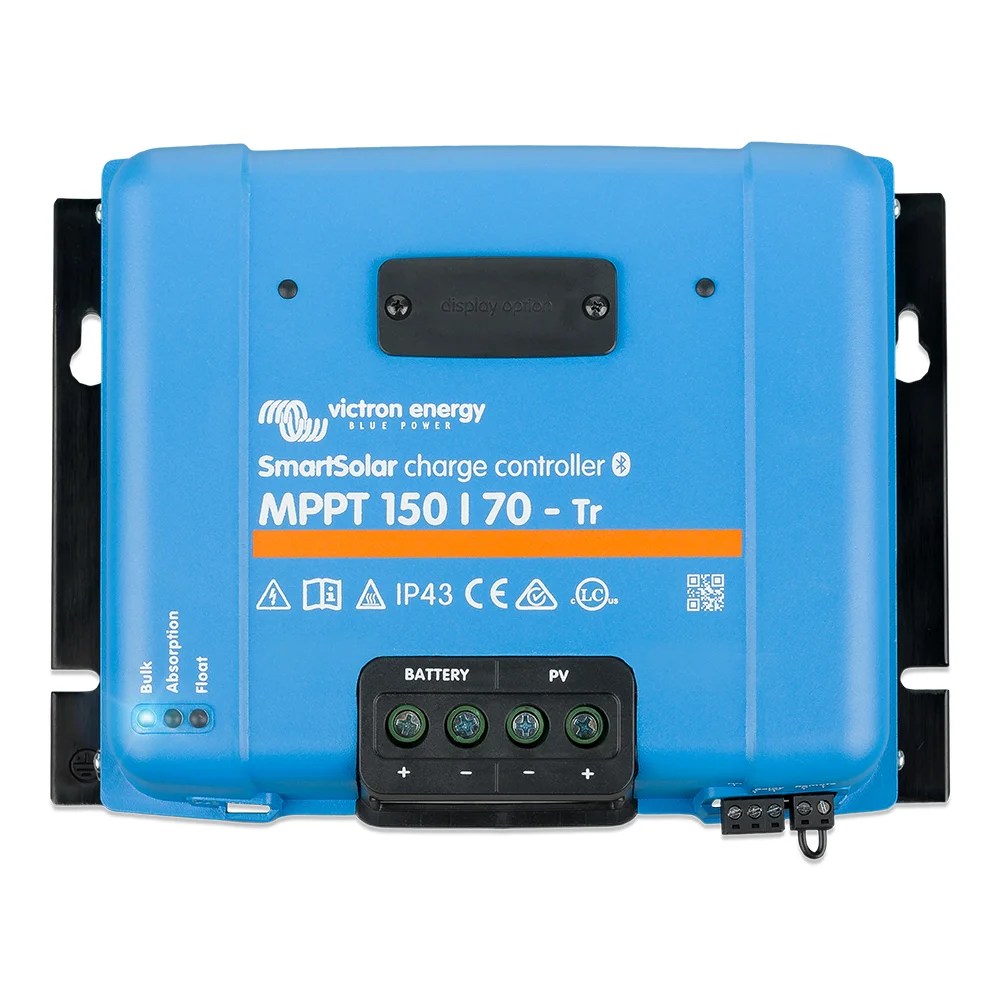

Victron SmartSolar MPPT 150/70-TR Solar Charge Controller – UL Approved
$450.00
2 in stock
SmartSolar MPPT 150/70 – TR Solar Charge Controller
Features:
- Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
- Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
- Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.
- Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
- Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
- Internal temperature sensor Compensates absorption and float charge voltage for temperature.
- Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
- VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
- Remote on-off To connect for example to a VE.BUS BMS.
- Programmable relay Can be programmed to trip on an alarm, or other events
Please contact your dealer for any returns, repairs or support issues related to this product.
| Weight | 8.05 g |
|---|---|
| Dimensions | 11 × 10 × 6 cm |
Brand
Victron Energy
Accessories
Literature
Quick Guide: Download PDF
Videos
Video 1: Link
