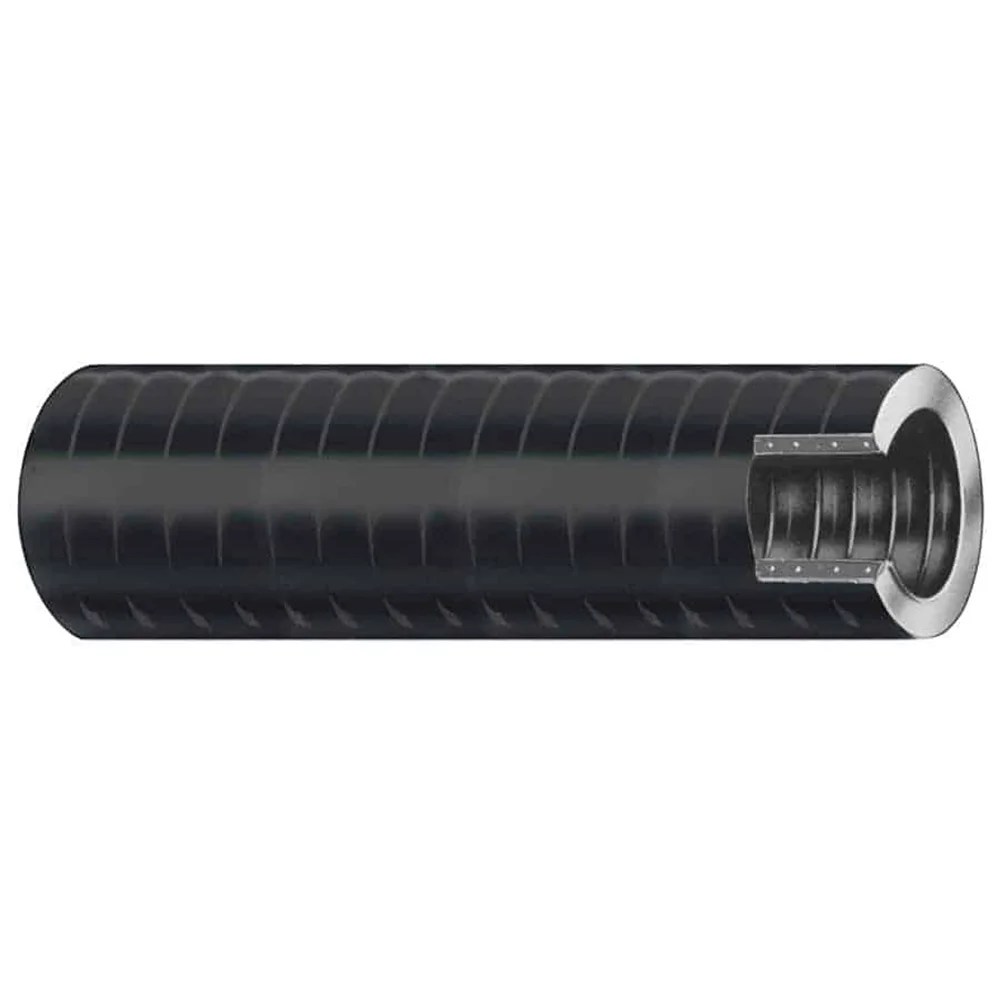

Trident Marine 1-1/2″ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black – Sold by the Foot
$9.99
14 in stock
1-1/2″ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black – Sold by the Foot
Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.
Features:
- Sold by the foot
- 149 series of hoses is extra flexible
Application:
- Bilge and live well hose
Specifications:
- Tube & Cover: Hard PVC helix
- Color: Black
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-48°C)
- Inner Diameter: (inch) 1-1/2″ / (mm) 38.1
- Outer Diameter: (inch) 1.792″ / (mm) 45.5
- Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
- Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98
- Bend Radius: (inch) 4″ / (mm) 101.6
*Burst Pressure is 4 x Working Pressure
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
| Weight | 0.46 g |
|---|---|
| Dimensions | 12 × 3 × 3 cm |
