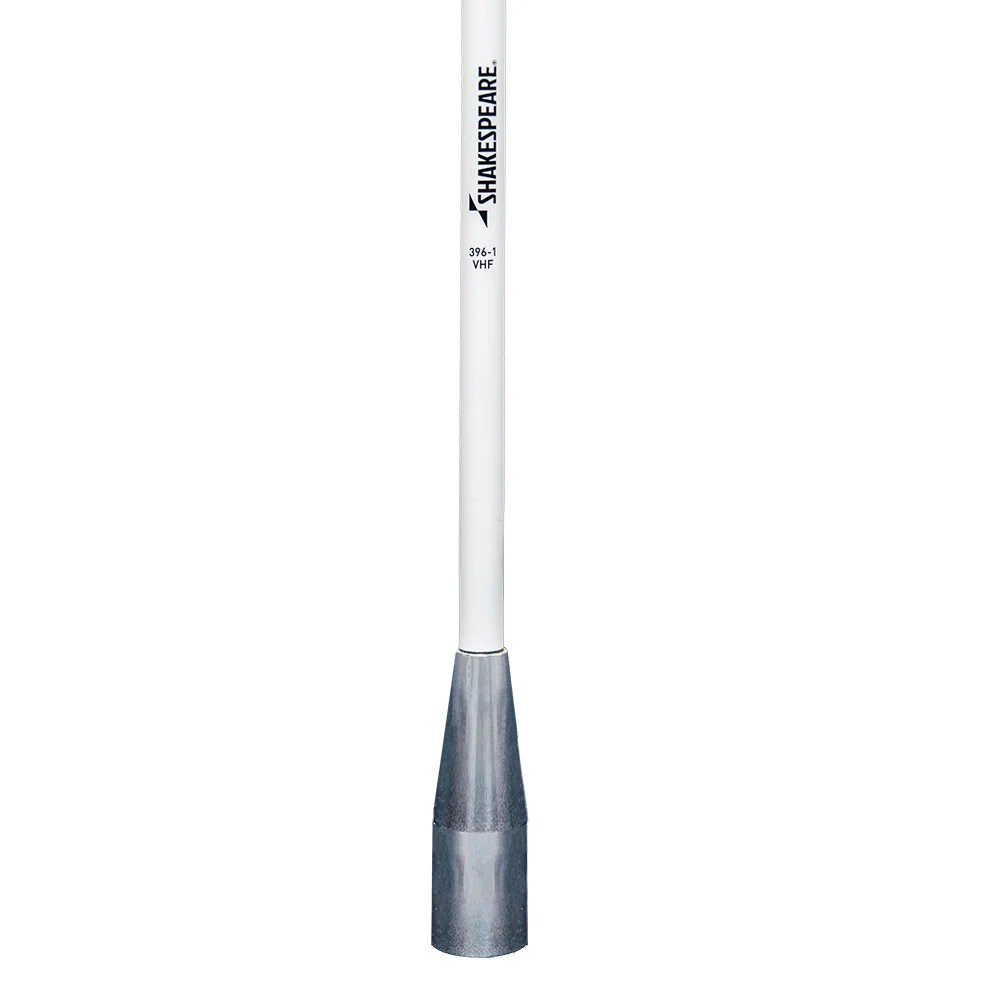

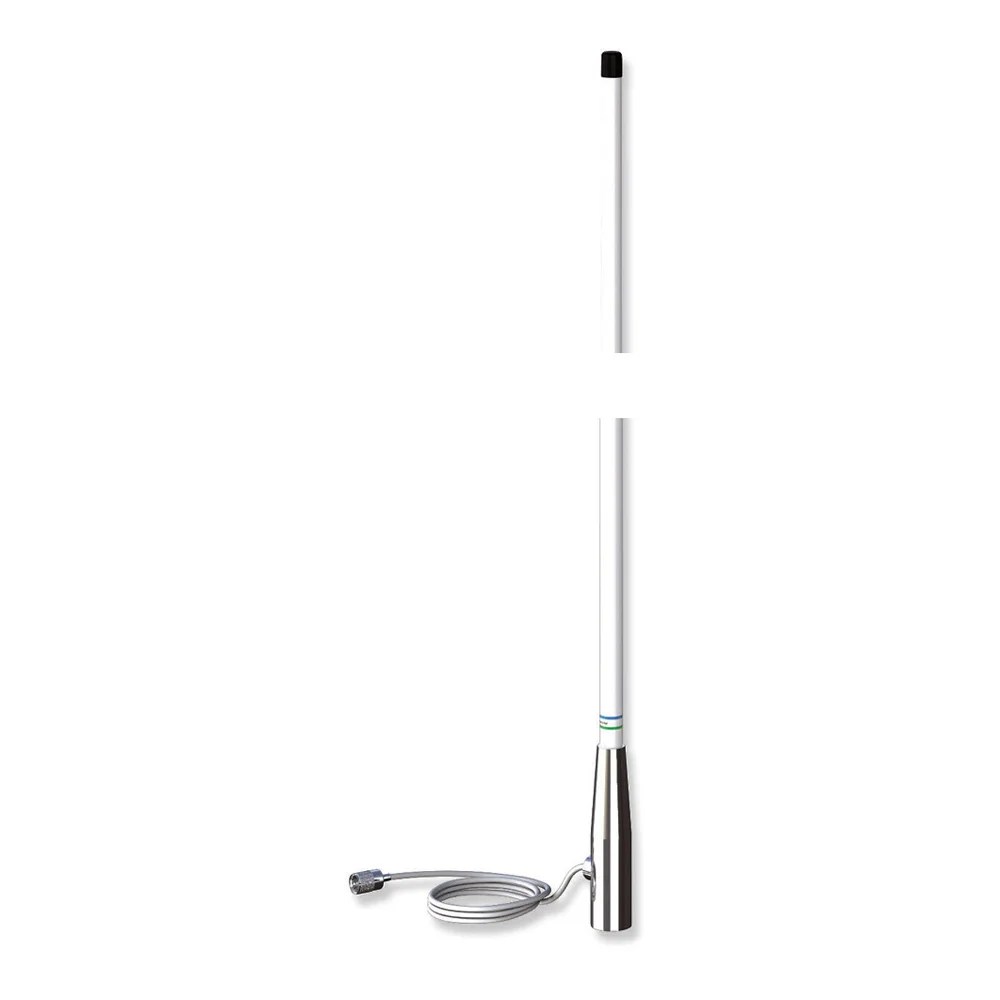

Style 396-1 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1-14 thread
- Includes 15′ RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount
- One section
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15′ RG-58 cable |
| Height (feet): | 5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
| Weight | 2.9 g |
|---|---|
| Dimensions | 63 × 3 × 3 cm |
Brand
Shakespeare
Accessories
- Shakespeare 408-R Stand-Off Bracket
- Shakespeare 410-R Mounting Kit
- Shakespeare 4186BP/L206B Nylon Ratchet Mount
- Shakespeare 4186U Nylon Ratchet Mount - Unassembled
- Shakespeare 4187 Stainless Steel Ratchet Mount
- Shakespeare 4365 Straight Mount
- Shakespeare 81-S Stainless Steel Swivel Mount
- Shakespeare 4187HD Stainless Steel Heavy Duty Ratchet Mount
- Shakespeare 4700 6" Stainless Steel Extension
- Shakespeare 4700-1 12" Stainless Steel Extension
- Shakespeare 4700-2 24" Stainless Steel Extension
- Shakespeare 4190 Stainless Steel Rail Mount
- Shakespeare 4710 Flange Mount
- Shakespeare 4720 Economy Rail Antenna Mount
- Shakespeare 4188-SL Rail Mount Ratchet Mount for 1" to 1.5" Rails
Literature
Quick Guide: Download PDF
