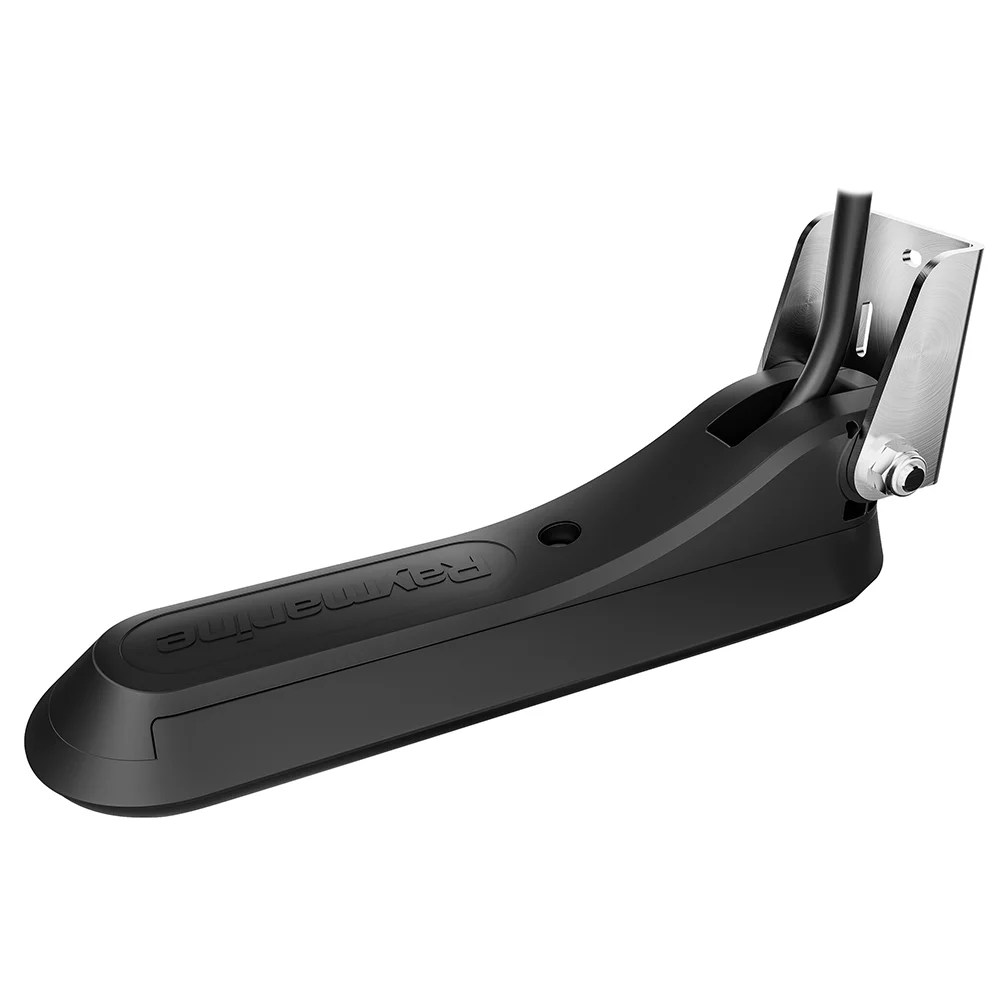

RealVision 3D™ All-In-One Transom Mount Transducer
Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.
The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.
The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)
What’s in the Box?
- RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
- Transom bracket
- Mounting hardware
- Installation instructions
| Weight | 5.3 g |
|---|---|
| Dimensions | 14 × 11 × 5 cm |
Brand
Raymarine
Accessories
- Raymarine RealVision 3D Transducer Extension Cable - 3M(10')
- Raymarine RealVision 3D Transducer Extension Cable - 5M(16')
- Raymarine RealVision 3D Transducer Extension Cable - 8M(26')
- Sudbury Elastomeric Marine Sealant - 10oz Cartridge - White
- Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Black
- Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Clear
- Sudbury Elastomeric 3 oz (89ml) Sealant Tube - White
- Sudbury Elastomeric 3 oz (89ml) Sealant Tube - Clear
- Sudbury Elastometric 3 oz (89ml) Sealant Tube - Black
- BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - White
- BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Black
- BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Mahogany
- BoatLIFE Life-Calk Cartridge - White
- BoatLIFE Life-Calk Cartridge - Black
- BoatLIFE Life-Calk Cartridge - Mahogany
- BoatLIFE Life-Calk Cartridge - Teak Brown
- BoatLIFE Liquid Life-Calk Sealant Tube - 2.8 FL. Oz. - White
- BoatLIFE Liquid Life-Calk Sealant Tube - 2.8 FL. Oz. - Black
- BoatLIFE LifeSeal® Sealant Cartridge - Clear
- BoatLIFE LifeSeal® Sealant Cartridge - White
- BoatLIFE LifeSeal® Sealant Cartridge - Black
- BoatLIFE LifeSeal® Sealant Cartridge - Cameo
- BoatLIFE LifeSeal® Sealant Tube 2.8 FL. Oz - Clear
- BoatLIFE LifeSeal® Sealant Tube 2.8 FL. Oz - White
- BoatLIFE LifeSeal® Sealant Tube 2.8 FL. Oz - Black
- Raymarine RV-100 RealVision 3D Transom Bracket Kit
- Sea-Dog Stainless Steel Midget Vent - Medium
- Raymarine Step Mount f/RV-100 RealVision 3D Transom Mount Transducer
- Raymarine Jack Plate Mount f/RV-100 RealVision 3D Transducer
- Sika Sikaflex® 291 Fast Cure - White - 3oz Tube
- Sika Sikaflex® 291 Fast Cure - Black - 3oz Tube
No literature available for this product.
