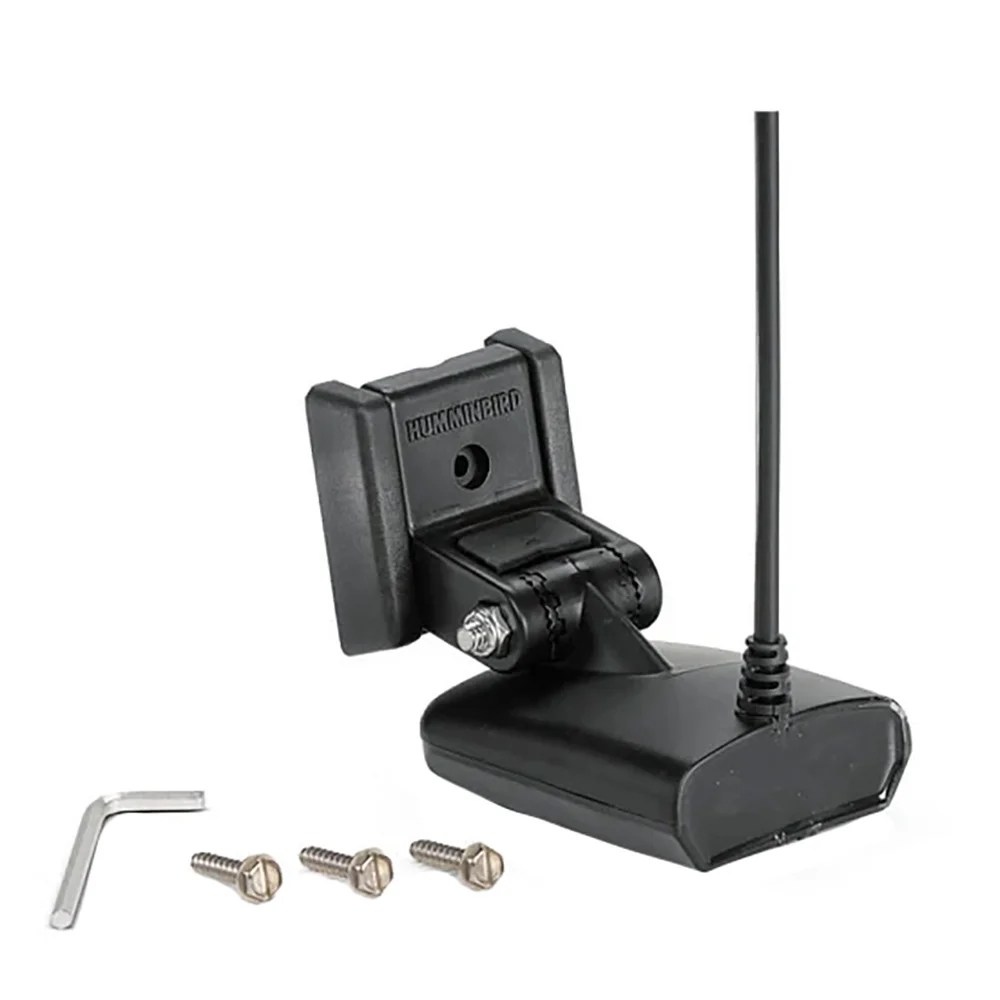

XNT-9-HW-SI-T – Transom Mount Side Image Transducer

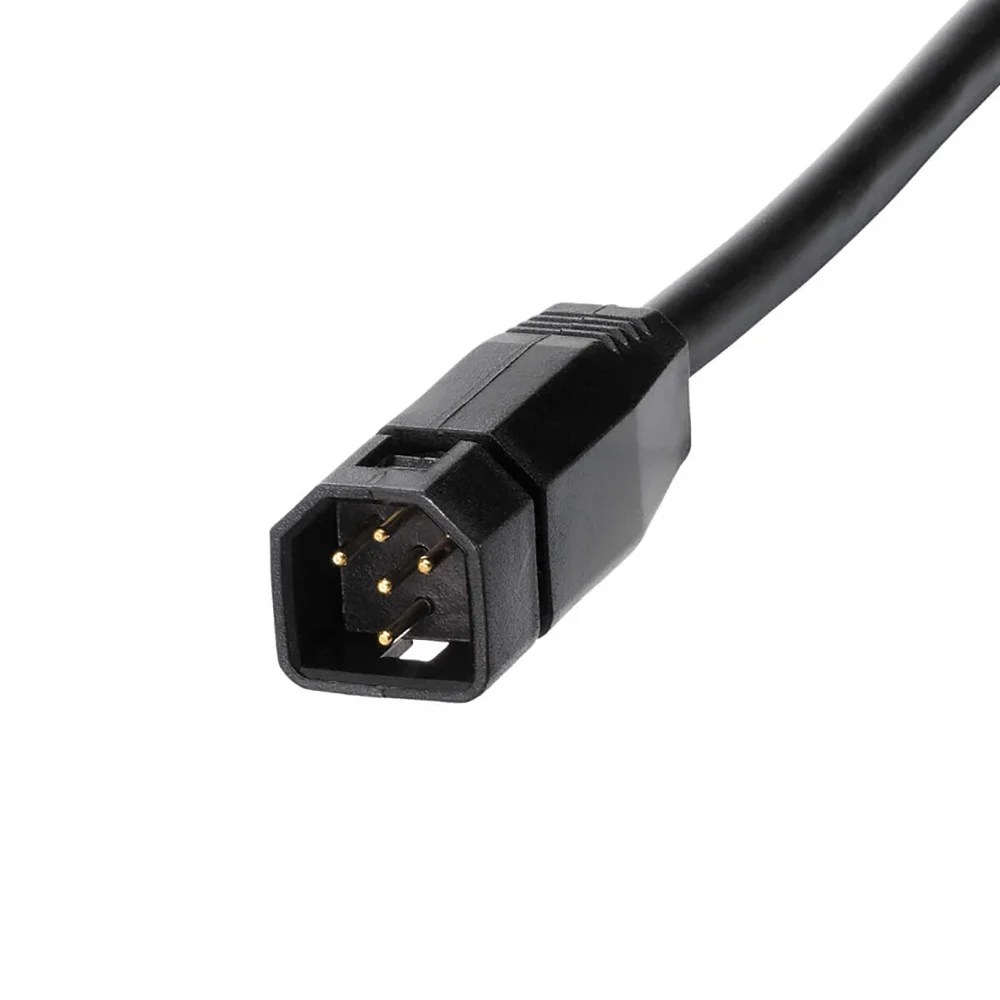

This transom mount transducer provides CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP, and temperature for compatible HELIX fish finders. Includes a 20-foot cable and mounting hardware.
Features:
- Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz
- Side Imaging frequencies of 455 kHz with built-in temperature
- This transducer does not support MEGA Side Imaging or MEGA Down Imaging
- 1-Year Limited Warranty
Specifications:
- Compatible With: HELIX 7 CHIRP SI GPS G4 (Not for use with MEGA Side Imaging models)
- Mount Type: Transom
- Sonar Type: Side Imaging, 2D
- Cable Length: 20 ft.
Brand
Humminbird
No accessories available for this product.
Literature
Installation Guide: Download PDF
No videos available for this product.
