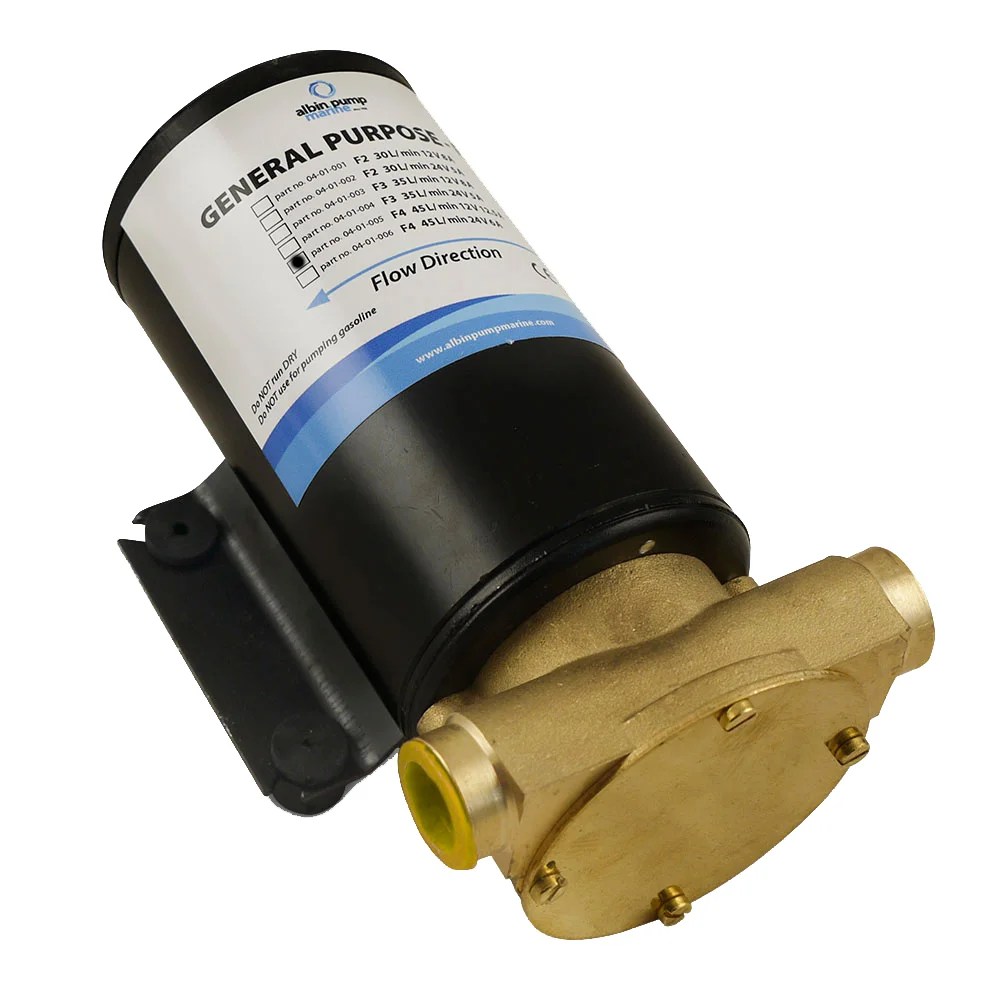

General Purpose Pump FIP F4 (12 GPM) – 12V
DC 12V F4 size FIP pump with capacity 45 L/min (12 GMP). Used for pumping water, oils and chemicals.
Features:
- Pump body in brass, stainless steel shaft and high quality impeller
- Self priming up to 5m vertical lift
- Reversible flow direction by changing polarity
- Interchangeable with Johnson Pump 10-24689-01
Specifications:
- Weight: 1 lg/2 lbs
- Dimensions: 180/7L x 90/3.5H x 120/4.7W mm/in
- Port Connections: 19mm (1/2″)
- Fuse: 12,5A
*CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
| Weight | 6.45 g |
|---|---|
| Dimensions | 8 × 5 × 4 cm |
